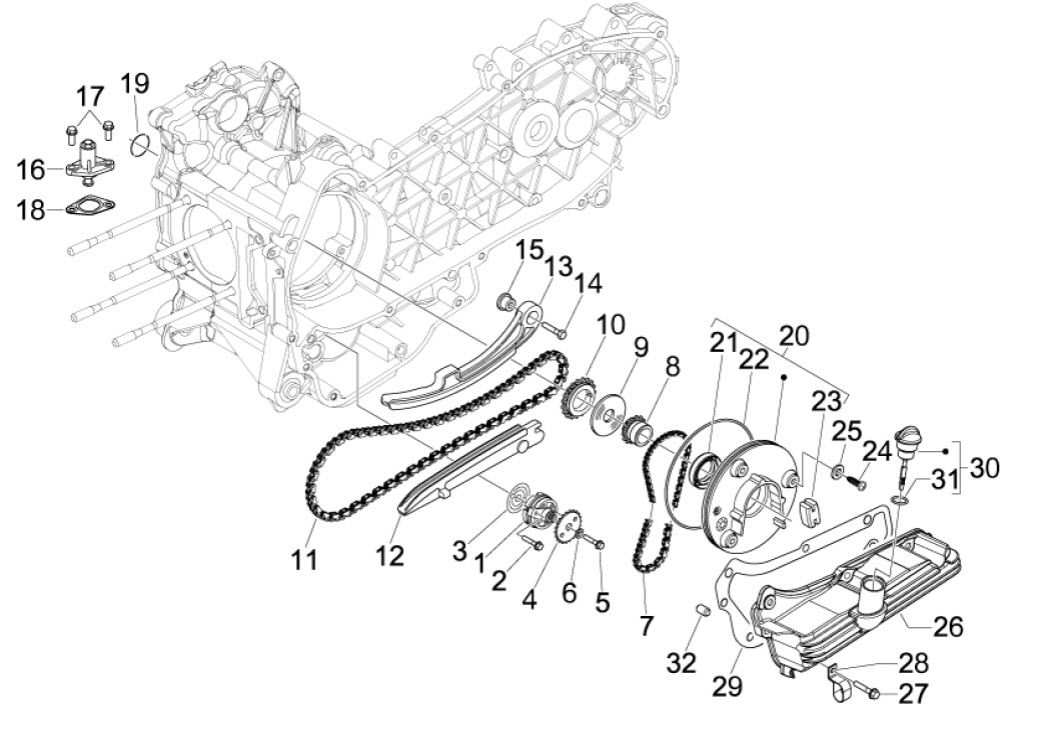

Vespa & Piaggio 150cc 2V Leader Oil Pump, Chain & Timing Cover

#2 829593 #23 434345

Grouped product items
No.	Item No.	Product Name	Price	Qty
1	844352	OIL PUMP LEADER/QUASAR/3V/iGET - ET4/LX/GT/GTS PRIMAVERA/SPRINT/FLY/946 (82948R 82877R) More Info >	$29.95
2	SO	SPECIAL ORDER ITEM -Please call or email for further information	$0.00	Out of stock
3	847929	Oil Pump Gasket - LEADER/QUASAR/3V/iGET - ET4/LX/GT/GTS PRIMAVERA/SPRINT/FLY/946 More Info >	$4.95
4	287913	Oil Pump Drive Gear - Vespa & Piaggio 50/150/200/250/300/310cc More Info >	$14.95
5	833722	Bolt for Seat to Frame Mount More Info >	$1.95
6	436695	Belleville Spring Washer For Oil Pump Gear 50-350cc More Info >	$2.34
7	82649R	Oil Pump Chain Piaggio 4t 150-300 More Info >	$12.95
9	483918	Washer (17X46X0.5) More Info >	$10.95
10	82782R	Timing Chain Drive Gear for 19.5mm Crank More Info >	$17.95
11	82643R	TIMING CHAIN ET4-LX 125-150CC 94-LINK More Info >	$39.94
12	828308	ET4-LX-GT200 Lower Timing Chain Guide More Info >	$4.95
13	828303	UPPER TIMING CHAIN GUIDE - 125/150/200cc LEADER ENGINES (840510) More Info >	$9.95
14	414837	FLANGE BOLT FOR BELT COVER (M6 X 25) (B016774) More Info >	$2.49
15	485868	Spacer More Info >	$4.95
16	82650R	Timing Chain Guide More Info >	$41.95
17	B016777	SCREW W/ FLANGE M6X16 More Info >	$4.95
18	834254	Gasket for Timing Chain Tensioner More Info >	$4.95
19	825952	OIL PUMP DRIVE SPROCKET O-RING ON CRANKSHAFT More Info >	$2.49
20	828875	Main Seal Timing Cover (483775 847116) More Info >	$91.95
21	82538R	Oil Seal Aluminum Timing Cover Vespa LX (24X35X7) More Info >	$8.95
22	825620	O-RING ALUMINUM TIMING COVER/MAIN SEAL VARIATOR SIDE More Info >	$6.95
24	015585	SCREW; STATOR PLATE SECURING ALSO SPEEDO; VINTAGE VESPA (M5 X 12) (012490) (010047) (000702) More Info >	$1.95
25	487937	Copper Sealing Washer for Timing Cover More Info >	$1.95
26	829523	OIL PAN ET4/LX150/S150/GT200 (827772 843761) More Info >	$43.95
27	289731	FLANGE SCREW BOLT BELT COVER SHORTER (M6 X 30) (B016792) More Info >	$2.49
28	487824	Rear Brake Cable Clamp More Info >	$3.49
29	830128	Oil Pan Gasket More Info >	$10.95
30	846819	ENGINE OIL DIPSTICK W/ORING - 150/200/250/300 ET/LX/LXV/S/GT/GTS/BV/MP3 (827761 827091 843364) More Info >	$8.95
31	479986	O-RING GTS & 3V DIP STICK & ORING TIMING INSPECTION PLUG QUASAR GTS 250-300 (1A009397) More Info >	$3.49
32	277916	DOWEL BETWEEN CYLINDER AND ENGINE CASE OR HEAD AND CYLINDER (6.5X7.5X12) More Info >	$4.95
