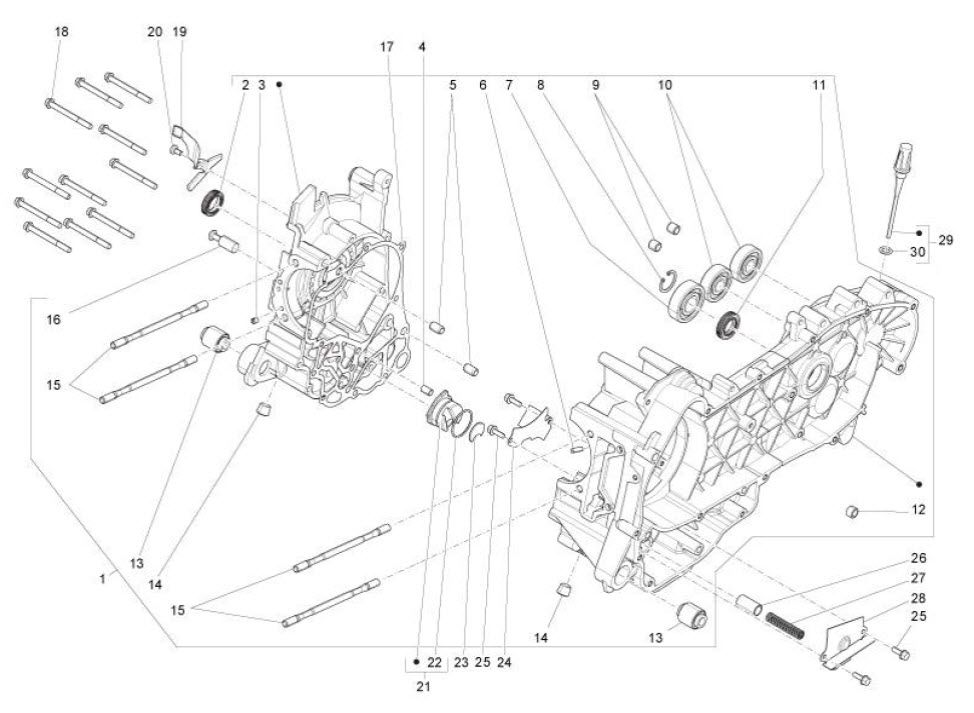

Vespa & Piaggio 150cc 2V Leader Crankcase 2001-2016

#3 844582 411311 411295 411295 B016425 876657 845861 #23 840489

Grouped product items
No.	Item No.	Product Name	Price	Qty
1	SO	SPECIAL ORDER ITEM -Please call or email for further information	$0.00	Out of stock
2	82540R	Crank Seal Flywheel Side 20x30x7 - 150/200cc (482350 485974 82540R 82898R) More Info >	$6.95
4	277916	DOWEL BETWEEN CYLINDER AND ENGINE CASE OR HEAD AND CYLINDER (6.5X7.5X12) More Info >	$4.95
5	239388	ALIGNMENT DOWEL PEG FOR BELT COVER AND CRANKCASE (6.5X9.5X15) (B015956) More Info >	$4.95
6	478115	LOCATING DOWEL PIN CRANK CASE 8MM ID, 11MM OD (B015957) 500, PRIMAVERA SPRINT 150, GTS CYLINDER More Info >	$4.49
7	833701	Beraing for Input Shaft - Vespa/Piaggio 150/200/250/300cc (485913 82990R 83023R)(20X47X14) More Info >	$17.95
8	000674	Circlip For Flywheel and Input Shaft (B015959) More Info >	$2.95
9	484034	Oil Squirter Case Nozzle (AP8560017) More Info >	$8.94
10	030209	Ball Bearing for Gear Box or Cush Gear Assembly (15x42x13) (112793 235934 485912 83018R 83026R SF504-1002) More Info >	$15.95
11	82539R	Seal for Driven Pulley Shaft More Info >	$11.49
12	431860	Bushing More Info >	$4.49
13	486081	SILENT BLOCK ENGINE MOTOR MOUNT IN ENGINE CASES (2 REQ'D) ET4/LX/S/GT/GTS/BV/SP/PR 50-500CC (MOST VESPA/PIAGGIO) More Info >	$9.95
16	483785	CENTER STAND SPRING/PIVOT MOUNT ON ENGINE CASING - MOST MODERN VESPA/PIAGGIO APPLICATIONS More Info >	$10.95
17	875111	CRANKCASE GASKET 125-300CC 2006 AND LATER (845212) More Info >	$10.95
20	018575	M5X10 Screw For Pick up Coil and various other locations (1A003111) More Info >	$0.95
22	431065	O-Ring for Internal Engine Oil Plug More Info >	$3.95
24	485047	Upper Panel for Oil Pan More Info >	$2.96
25	830061	Flange Bolt Crankcase Vespa GTS More Info >	$0.95
26	829661	Oil Pressure Valve More Info >	$10.95
27	485655	OIL PRESSURE VALVE SPRING ET/LX/GTS/GTV HPE HPE2 150/200/250/300/310 More Info >	$3.95
28	483767	Lower Panel More Info >	$3.95
30	827085	O-Ring for Rear Hub Oil Dip Stick Vespa GTS More Info >	$1.15
