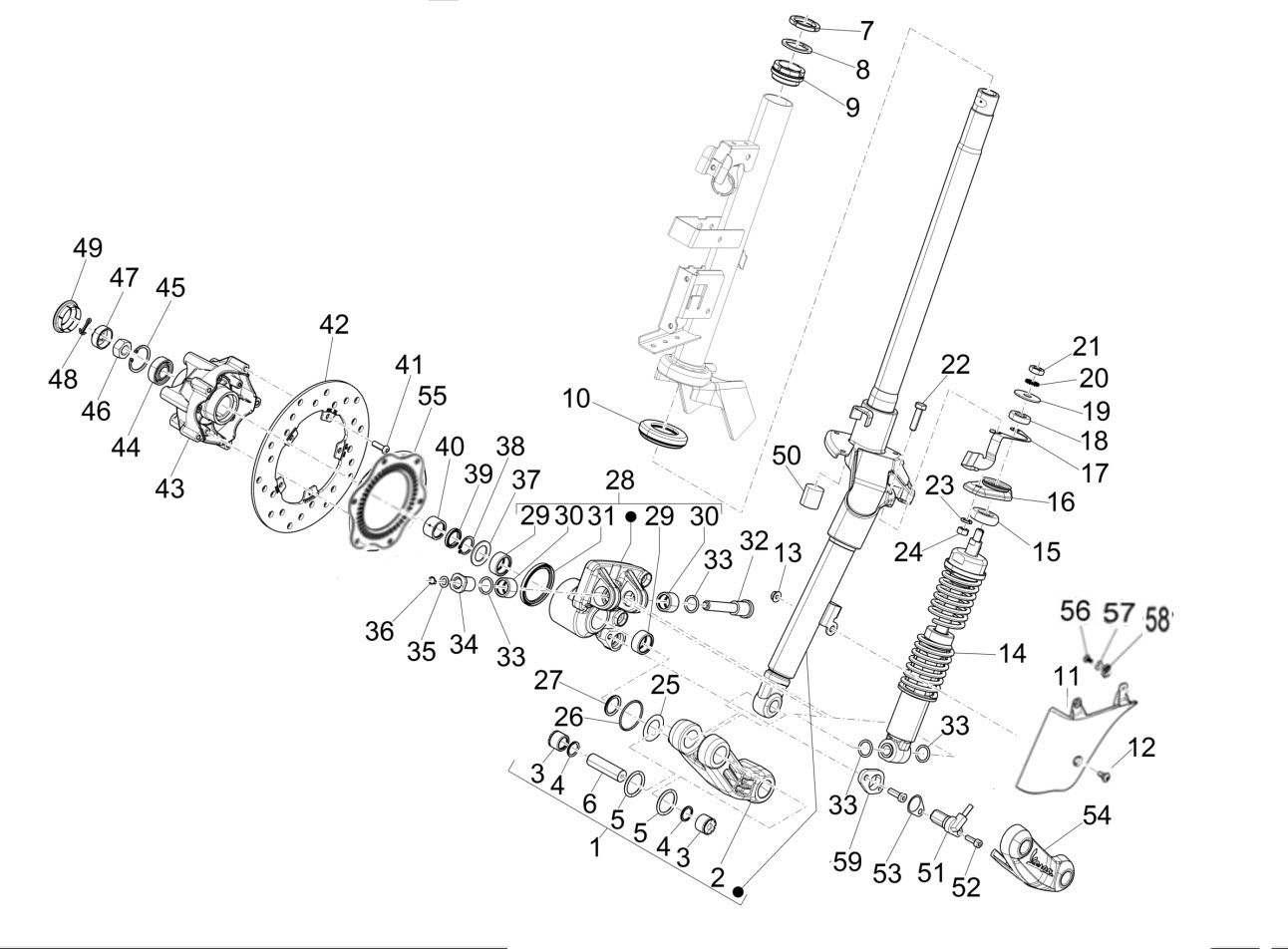

Vespa GTS 300ie ABS ESS Front Fork 2015-2017

6691315 #3 198513 0111094 1C000327 1C0005065 1C000167 #32 1C000500 #33 482302 #34 1C000499 #35 847183 650907 601026 880285 1C000548 #5 006731
Grouped product items
No. Item No. Product Name Price Qty
1 1C0006215 STEERING COLUMN FORK ASSY - GTS 2015-2017 ABS
$599.95
2 SO SPECIAL ORDER ITEM -Please call or email for further information
$0.00
Out of stock
4 150579 Front Fork Oil Seal
$3.95
6 177451 FORK BEARING LINK PIVOT KIT 20MM FORK MOST MODERN VESPAS (ALSO MP3 AND VSX VLX PX/PXE 1983-2017)
$34.95
8 003751 Lock Washer Upper Steering Bearings (30x40x2.5) (0037514 003751)
$4.75
9 CM061303 UPPER FORK STEERING BEARING KIT - ALL MODERN VESPA/PIAGGIO W/ 5/32" (4MM) BALL BEARINGS 3-PIECE (56002R, 564257, 650693 65069345)
$24.95
10 CM061304 LOWER FORK STEERING BEARING KIT - ALL MODERN VESPA/PIAGGIO 1/4" BALL BEARINGS 4-PIECE (EXCEPT MP3/BV500) (56003R 650075 153024 65007545) OEM (FOR AFTERMARKET SEE 152023)
$35.95
11 598615000C Satin Black GT/GTS Suspension Cover 2005-2022 (598615 1C001153)
$29.95
12 259348 Stepped Shoulder Screw M6X16MM (298086 CM179202)
$1.95
13 241936 M6 Flange Nut (288245 969224)
$1.29
14 1C000922R FRONT SHOCK ASSY - GTS ABS 2015/16 ONLY (SILVER SPRING)
$201.95
14 M4617076 MALOSSI FRONT SHOCK PAOLI RS24 GTS/SUPER/GTV (ABS) SPRINT/PRIMA 2015-2017
$299.95
14 BI-PRFR Bitubo Performance Front Shock GTS/GTV/Primavera/Sprint 2015-2016 ONLY (PV043GEV01)
$319.95
15 174874 LOWER BUFFER FRONT SHOCK MOUNT - ET/LX/S/GT/GTS/HPE2 ALL 50CC-300CC VESPA AND PIAGGIO
$6.95
16 273693 UPPER SHOCK BRACKET LX/LXV/S/GT/GTS/GTV 50-300 (SP/PR WITH iGET)
$11.95
18 174085 FRONT SHOCK RUBBER BUFFER UPPER BUFFER ON MODERN VESPA - P/PX/ET/LX/S/GT/GTS/HPE2 (216209)
$5.95
19 174088 FENDER WASHER FOR UPPER FRONT SHOCK MOUNT (TOP OF ASSEMBLY) - ET/GT/GTS/GTV/LX/LXV/S/P/PK/PX/SP/PR (35X10X2)
$4.95
20 012535 M9 Internal Star Lock Washer, For Front Shock Mounting Plate
$0.59
21 021210 10mm Nut Thin Style For Oil Tank Banjo and Front Shock Mounting Plate (M10X1.25) (SF504-1118)
$3.95
22 031119 8MM BOLT M8X22 MIRROR BRACKET (AND OTHER VINTAGE VESPA APPLICATIONS) (031118 SF504-1089)
$1.79
23 016408 8mm Lock Washer (Split Washer)
$0.39
24 020108 8MM NUT FOR WHEEL AND MORE (13MM OD)
$0.49
25 177445 Spacer Washer - 20mm Fork
$4.95
26 177408 O Ring for Front Suspension Arm - 20mm Fork
$2.75
27 177521 Seal for Front Swing-20mm
$4.95
29 177436 (22 X 28 X 12) Bearing For Brake Back Plate - 20mm Fork
$9.95
31 177494 (46X56X4) Seal for Front Caliper Bracket - 20mm Fork
$7.49
36 006408 Circlip For Oil Pump Gear
$1.25
37 177414 D Spacer Washer - 20mm FORK
$4.95
38 006422 Cir Clip Front Wheel Axle for 20mm Fork
$3.95
39 177443 OIL SEAL (20 X 26 X 4) FOR FRONT HUB INBOARD OR SPEEDO GEAR SIDE 20MM SPINDLE PK/PX/STELLA/ET/GT/GTS//LXV/S/PRIMAVERA/SPRINT 50-300CC ALL MP3 FRONT
$6.95
40 177442 CAGED NEEDLE BEARING FRONT HUB ON INBOARD/SPEEDO RING GEAR SIDE (P/PX 20MM SPINDLE) (20X26X16) PK/PX/STELLA/ET/GT/GTS/LXV/S/PRIMA/SPRINT 50-300CC ALL MP3 FRONT
$7.95
41 271147 BOLT/SCREW BRAKE ROTOR DISC/ABS RING (M6x20) (5 OR 6 REQ'D) (667152) (1C002563)
$3.94
42 564573 ORIGINAL OEM Disc Brake Rotor Disk for VESPA GT GTS GTV HPE HPE2 (56484R 56391R 649223)
$42.95
44 177610 (15 X 35 X 11) Ball Bearing for 20mm Front Hub (SF504-1104)
$14.95
45 006635 Cir-Clip Front Hub 20mm
$5.95
46 021114 Nut for PXE-20mm
$1.95
47 177609 CASTELLATED CAP FOR FRONT HUB NUT 20MM SPINDLE -PK/PX/STELLA/ET/GT/GTS//LXV/S/PRIMAVERA/SPRINT 50-300CC ALL MP3 FRONT
$1.95
48 012789-C COTTER PIN VESPA (1982 TO PRESENT W/ CASTELLATED LOCKING CAP) (.156"" X 1.25")
$0.45
49 1C000523 CHROME CENTER CAP FOR FRONT WHEEL 2015 STYLE - SPRINT/PRIMAVERA/GTS
$13.95
51 1D0001275 ABS WHEEL SPEED SENSOR FRONT GTS HPE HPE2 2015-CURRENT (SAME AS SPRINT/PRIMA/946 1D003797) (1D0005255 1D0011175 1D003747 1D0042245)
$69.95
52 006975 Spring Washer M5 (620418)
$0.46
54 1C000835 Suspension Arm Cover Primavera/Sprint/GTS ABS (2015-2017)
$34.95
55 669115U5 ABS FRONT TONE RING - GTS/GTV/946/HPE (669115 669115Z)
$19.95
56 259349 #8x1/2 Black Coarse Thread Screw for Plastic Panels
$0.95
57 012528 M5 Internal Star Lock Washer
$0.59
58 CM017410 #8 TINNERMAN CLIP FOR ATTACHING PLASTIC PANELS (I.E. KNEE PAD, BATTERY COVER, ETC.) (CM017408) (184142)
$1.95
In stock
