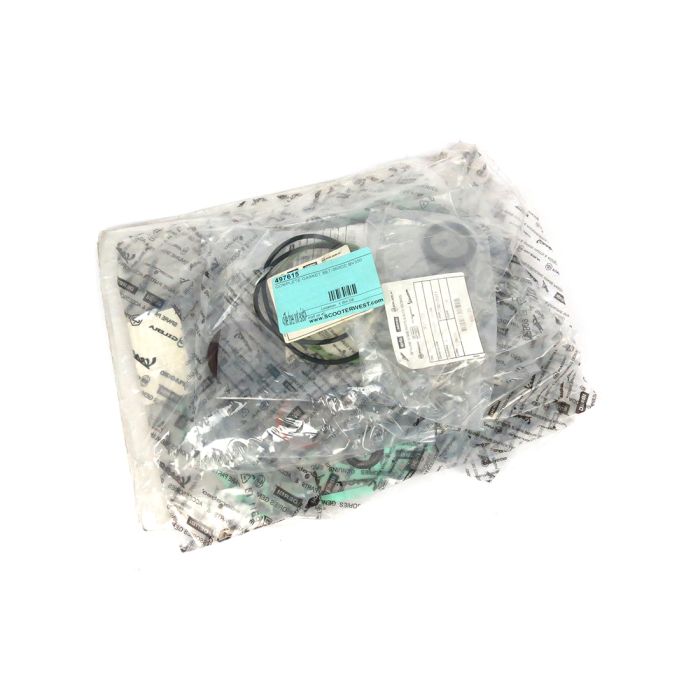

GASKET AND SEAL SET PIAGGIO BV350 ALL YEARS

OEM Gasket and Seal set for the BV 350. Fit's all years.

This kit includes the following part#'s

Includes:
 1. B015183 Head Gasket
 2. B018887  0.3mm Base Gasket
 3. 888662  Valve Cover Gasket
 4. 879662  Copper Exhaust Gasket
 5. 834254 Cylinder/chain tensioner gasket
6. 880727 Impeller Cover Gasket
7. B015425 Crankcase Gasket
8. B014671 Water pump Housing Gasket
9. 873931 Seal for driven pulley Shaft
10. 825023 Seal for input shaft
11. 436438 (4) Valve Stem Seal
12. 829201 Rear Axle Seal
13. B016176 Oil Pump O-ring
14. B015679 O-ring clutch cover
15. 855706 (early style 2013-14)

Does NOT Include:
 •Qty. 5 830249  Valve Cover Rubbers
 •878906 O-ring for thermostat
 •297027 Oring for bleed screw
 •B016998 Water Pump Seal
• 842595 Mechanical Seal Water Pump
• 479986 Timing Inspection Plug O-ring
• CRUSHWASHER-M10 (2)
•CRUSHWASHER-M16
• 82831R Thermostat

• 880887 Oil Filter
• Alternative Base Gaskets 0.2mm B018886 & 0.4mm B018888
• HCL6MINI & HCL12MINI Coolant Hose Clamps
• Cylinder Studs Qty 4. 877285 (1A003628R)

Gaskets:
880727 Impeller cover gasket, B015425 Crankcase gasket , B014671 Water pump housing gasket, B015183 Head gasket, 834254 Chain tensioner gasket, 879662 Copper exhaust gasket, 880662 Valve cover gasket

Seals:
873931 Driven pulley shaft seal, 825023 Input shaft seal , 436438 (4) Valve stem seal , 829201 (83082R) Rear axle seal

O-rings:
B016176 (878894) Oil pump oring, B015619 Clutch cover oring, 855706 (early style 2013-14) Oil filter oring

Mostly complete, but there are a few items not included you may want to pick up:

842595

479986

CRUSHWASHER-M10 (2)

CRUSHWASHER-M16

82831R

297027

878906

487937 (3)
