Bottom End Gasket and Seal Set for Pre 2002 ET4 Leader 150cc Engine with Aluminum Timing Gear Cover

SKU
494984-ET4
$122.93
Add to Wish List Add to Compare

In stock

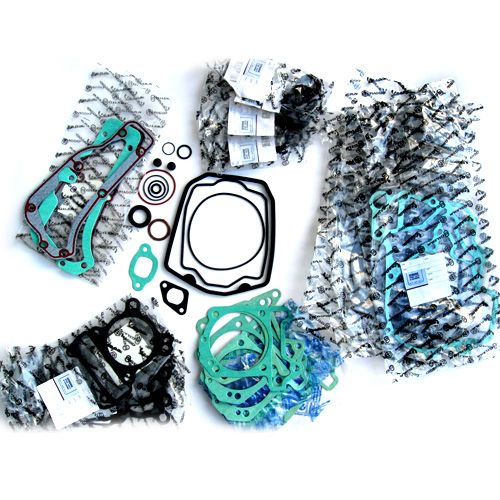

main product photo
(Actual Item May Vary from Image)
Customize Bottom End Gasket and Seal Set for Pre 2002 ET4 Leader 150cc Engine with Aluminum Timing Gear Cover
125/150/200CC Leader Crankcase Gasket - Early Style 2005 & Older (829526)   + $6.95
OIL PUMP DRIVE SPROCKET O-RING ON CRANKSHAFT   + $2.49
Crank Seal Flywheel Side 20x30x7 - 150/200cc (482350 485974 82540R 82898R)   + $6.95
PACKING WASHER FOR OIL PRESSURE SENSOR 82580R - ET/LX/LXV/S/GT/GTS 125-300CC ALL PIAGGIO 150-500CC OLD # 96 (AP9150472)   + $4.95
O-Ring for Oil Strainer 4 STROKE 50-500CC Vespa and Piaggio   + $1.59
ORING OIL DRAIN BOLT/PLUG MODERN VESPA/PIAGGIO 4T 50-500CC ET/LX/S/GT/GTS/GTV/SP/PR/MP3 (174601 ALSO ORING FOR FRONT HUB BACKPLATE P/PXE/PX)   + $1.75
HI-TEMP O-RING CLUTCH (SMALLER OF 2 O-RINGS) MODERN VESPA 150-300CC   + $3.95
Oil Seal for Rear Driven Pulley ET4/LX/GT/GTS/GTV   + $6.95
Oil Pump Gasket - LEADER/QUASAR/3V/iGET - ET4/LX/GT/GTS PRIMAVERA/SPRINT/FLY/946   + $4.95
Oil Pan Gasket   + $10.95
O-RING GTS & 3V DIP STICK & ORING TIMING INSPECTION PLUG QUASAR GTS 250-300 (1A009397)   + $3.49
GEARBOX GASKET - GT/LX/LXV/S/FLY 125-200CC LEADER ENGINES (487383)   + $8.95
Seal for Driven Pulley Shaft   + $11.49
Oil Seal for Rear Wheel Axle Vespa LX   + $8.95
CRUSH WASHER GASKET PACKING FOR GEAR OIL DRAIN BOLT PLUG (485703) (BOLT 138345 269755)   + $1.79
O-Ring For Center Stand Pivot Sleeve   + $1.49
O-RING ALUMINUM TIMING COVER/MAIN SEAL VARIATOR SIDE   + $6.95
Oil Seal Aluminum Timing Cover Vespa LX (24X35X7)   + $8.95
O-Ring for Rear Hub Oil Dip Stick Vespa GTS   + $1.15
Copper Sealing Washer for Timing Cover   + $1.95

* Required Fields

Your Customization
Bottom End Gasket and Seal Set for Pre 2002 ET4 Leader 150cc Engine with Aluminum Timing Gear Cover
Bottom End Gasket and Seal Set for Pre 2002 ET4 Leader 150cc Engine with Aluminum Timing Gear Cover

In stock

$122.93

Summary
    More Information
    Description

    Bottom End Gasket and Seal Set for Pre 2002 ET4 Leader 150cc Engine with Aluminum Timing Gear Cover - 494984-ET4

    We have developed master groups of all the individual gaskets, seals, and o-rings that you will need to rebuild your Vespa engine. These groups are further divided into sets for the "top-end" and "bottom-end" of the engine. The "top-end" kits consist of all the gaskets/seals/o-rings for the cylinder, cylinder head, and valve cover. The "bottom-end" consists of all the other gaskets/seals/o-ring you will need for a rebuild.

    **FOR A COMPLETE ENGINE OVERHAUL YOU WILL NEED TO ORDER BOTH THE "TOP-END" AND "BOTTOM-END" GASKET SETS IN ORDER TO ENSURE THAT YOU WILL HAVE EVERYTHING YOU WILL NEED**

    This Gasket Set Includes Parts #'s:
    827773
    825952
    82540R
    486075
    288474
    285536
    430585 (Qty. 2)
    431089 (Qty. 2)
    486082
    846098
    479986
    847930
    82539R
    82541R
    000397
    273754 (Qty. 2)
    825620
    82538R
    827085
    487937 (Qty. 3)

    Gaskets may vary from picture.
    Vespa ET4 150 (2001-2005) - Leader Motor
    Vespa LX150
    (2006-2014)
